Wiring Harness - 'Highway 22' Street Rod Application Photo Main Click for larger view & slide show -Click for larger view & slide show -

Wiring Harness - 'Highway 22' Street Rod Application

Item # 500695
Weighs 14.6150lbs.

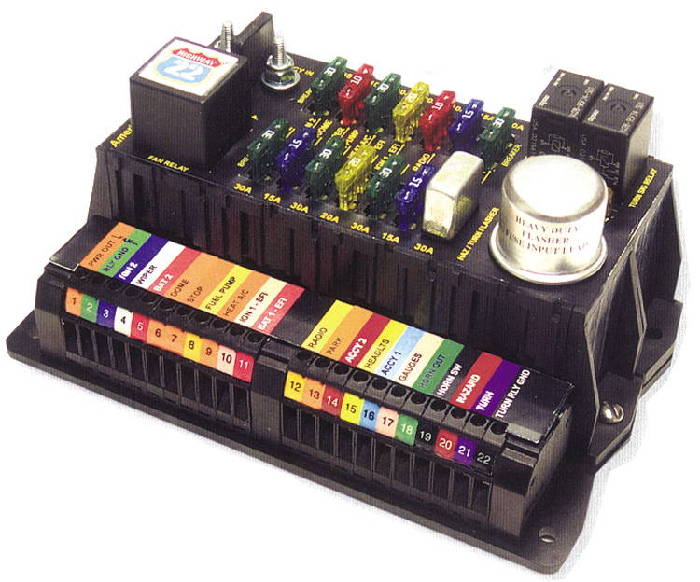

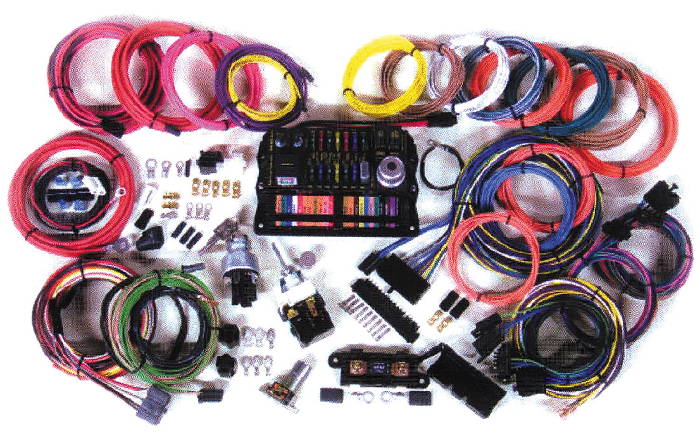

This Highway 22 Modular Wiring Panel System Features: 22 power circuits supported through 15 fuses and 1 circuit breaker. Battery and accessory power tap studs provided for system expansion. Panel protected with a 175 amp Mega-Fuse junction block with 8 gauge panel feed wire. Nylon, mechanically secured panel containing secondary push-back locks, has a 7-1/2" x 4-1/2" footprint, 3-3/8" height, and mounted on a (G10) non conductive epoxy base. All power buss bars are constructed of 6 gauge cooper. All wires are constructed from heat resistant (-60F +275F) GXL heavy-wall wire with laser printed circuit identification every 2 inches. GM color coded wires for ease of installation. All power circuit wires are 12 gauge constructed. New front loaded vibration proof self- locking (Hookes Law) screw down terminal connection. Dedicated battery and ignition circuits for electronic fuel injection (EFI) Kit contains 3 relays (Horn, Turn Signal & 40 amp Electric Fan or Fuel Pump). Turn signal and hazard flasher circuits provided. 8 gauge alternator feed wire provided. The kit is set-up for a GM "SI" internally regulated alternator or GM 1-wire. Alternator diode is also provided. Kit includes 3 switches (In-dash Ignition, Headlight w/ Aluminum Knob & Floor Dimmer). GM in-column ignition switch connectors provided, along with 3-7/8" GM steering column connectors with male and female terminals. Plugs directly to most 69-74 GM columns, most after market steering columns or use provided terminals and connector to mate to any column. Spare circuits available (for power windows, locks, cruise, etc.). Engine compartment (oil pressure, water temp, tach, starter, neutral safety, brake switch, ignition switch, distributor (GM HEI or Points), coil, main power and alternator). Chassis wiring (fuel pump, electric fan, headlights, running lights, brake lights, 3rd brake light, directionals (2 prong flasher), license plate, radio, heat & AC, and wipers). Full color schematic of overall vehicle wiring along with individual harness subkit instructions for trouble-free installation. For Ford Vehicles get the Ford Connection Kit click here

This part fits most Cars and Trucks.; exceptions may apply. Please read the complete description to see if this part fits your specific vehicle and application.
