Pressure Plate-Rebuilt
Chevrolet Parts -  Clutch Pressure Plate Spring
838646 38-53
$5.00 Each
CHEVROLET Clutch Pressure Plate Spring

This is the pressure plate retraction spring. Used when rebuilding an old worn out pressure plate. There's 3 required per plate.

For 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 Chevrolet Cars and Trucks

Pressure Plate & Flywheel Bolts
 Parts -  Pressure Plate Bolts -Shouldered, 3/8-16 X 1". Grade 8 (6 Bolts)
838653 38-57
$13.50 Set
Pressure Plate Bolts -Shouldered, 3/8-16 X 1". Grade 8 (6 Bolts)

These are the bolts for holding the pressure plate to the flywheel. They are the proper shouldered style that measure 3/8 inch diameter with a 16 threads per inch thread count...

For 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 1954 1955 1956 1957 Cars and Trucks


 Parts -  Flywheel To Crankshaft Bolts -Shouldered, 7/16-20 X 31/32". Grade 8 (6 Bolts)
839756 38-57
$12.19 Set
Flywheel To Crankshaft Bolts -Shouldered, 7/16-20 X 31/32". Grade 8 (6 Bolts)

These are the flywheel to crankshaft bolts for holding the flywheel on. They're the proper shouldered style bolt. They measure 7/16 inch diameter with a 20 threads per inch th...

For 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 1954 1955 1956 1957 Cars and Trucks

Pilot Bearing
Chevrolet Parts -  Pilot Bearing
907109 31-39
$35.00 Each
CHEVROLET Pilot Bearing

This roller style pilot bearing fits into the end of the engine crankshaft and supports the input shaft of the transmission.

For 1931 1932 1933 1934 1935 1936 1937 1938 1939 Chevrolet Cars and Trucks

Pilot Bushing
Chevrolet Parts -  Pilot Bushing
412562 39+66
$5.50 Each
CHEVROLET Pilot Bushing

This bushing style pilot bearing fits into the end of the engine crankshaft and supports the input shaft of the transmission. 19/32 inch inside diameter 1-3/32 inch outside di...

For 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 1954 1955 1956 1957 1958 1959 1960 1961 1962 1963 1964 1965 1966 Chevrolet Cars and Trucks

Throwout Arm Ball
Chevrolet Parts -  Throwout Arm Ball With Stud - 1-1/2" Long
2054961 38-54
$6.00 Each
CHEVROLET Throwout Arm Ball With Stud - 1-1/2" Long

This is the throwout arm ball with the stud that screws into the bellhousing. It acts as a fulcrum for the clutch arm fork. (also known as a throw out arm) It's 1-1/2 inches. ...

For 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 1954 Chevrolet Cars and Trucks

Throwout Arm
Chevrolet Parts -  Throwout Arm
609952 38-39

CHEVROLET Throwout Arm

This is the throwout or clutch lever arm that holds the throw out bearing for the clutch. Fits passenger cars.

For 1938 1939 Chevrolet Cars

Clip
Chevrolet Parts -  Throwout Arm To Ball Stud Clip
838987 31-54
$9.00 Each
CHEVROLET Throwout Arm To Ball Stud Clip

This clip holds the clutch arm fork (throw out arm) to the ball stud inside of the bellhousing.

For 1931 1932 1933 1934 1935 1936 1937 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 1954 Chevrolet Cars and Trucks

Throwout Bearing
Chevrolet Parts -  Throwout Bearing
909422 38-54
$29.99 Each
CHEVROLET Throwout Bearing

This is the throw out bearing that resides in the bellhousing for engaging or disengaging the clutch.

For 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 1954 Chevrolet Cars and Trucks

Clip
Chevrolet Parts -  Clip- Throwout Arm To T/Out Bearing
837972 29-36

CHEVROLET Clip- Throwout Arm To T/Out Bearing

Clip Throwout arm to throwout bearing

For 1929 1930 1931 1932 1933 1934 1935 1936 Chevrolet Cars and Trucks

Throwout Arm Spring
Chevrolet Parts -  Throwout Arm Return Spring, 17.5" (Except 41-48 Cabriolet)
3653114 40^54
$10.00 Each
CHEVROLET Throwout Arm Return Spring, 17.5" (Except 41-48 Cabriolet)

This is a throwout arm (or clutch arm) return spring. (except 1941-48 Cabriolet). It measures 17-1/2 inches long with one straight end to be bent as needed for length.

For 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 1954 Chevrolet Cars


Chevrolet Parts -  Throwout Arm Spring 11" -Cabriolet
3659731 41^48
$10.00 Each
CHEVROLET Throwout Arm Spring 11" -Cabriolet

This is the throw out arm (or clutch arm) spring for a Cabriolet model. The spring helps pull back the clutch arm back into position. It's 11 inches long.

For 1941 1942 1944 1945 1946 1947 1948 Chevrolet Cars

Pressure Plate-Rebuilt
Chevrolet Parts -  Pressure Plate For Clutch - 9" ($50 Core Charge)
838956 38+53
$105.00 Each
CHEVROLET Pressure Plate For Clutch - 9" ($50 Core Charge)

This is a 9 inch pressure plate.

For 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 Chevrolet Cars and Trucks


Chevrolet Parts -  Pressure Plate For Clutch - 10-3/4", Heavy Duty - ($150 core charge)
838949 38-53
$150.00 Each
CHEVROLET Pressure Plate For Clutch - 10-3/4", Heavy Duty - ($150 core charge)

This is the heavy duty 10-3/4 inch pressure plate with 9 mounting holes for bolting to the flywheel.

For 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 Chevrolet Cars and Trucks


Chevrolet Parts -   Pressure Plate For Clutch - With 9" or 10" Clutch Disk (Core Charge $50)
3836715 54+57
$135.00 Each
CHEVROLET Pressure Plate For Clutch - With 9" or 10" Clutch Disk (Core Charge $50)

This is the pressure plate to use with a 9 inch or 10 inch clutch disc.

For 1954 1955 1956 1957 Chevrolet Cars and Trucks

Clutch Disc-Rebuilt
Chevrolet Parts -  Clutch Disk - 9" O.D. ($40 Core Charge)
3847450 38+54
$90.00 Each
CHEVROLET Clutch Disk - 9" O.D. ($40 Core Charge)

This clutch disc has a 9 inch outside diameter.

For 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 1954 Chevrolet Cars and Trucks

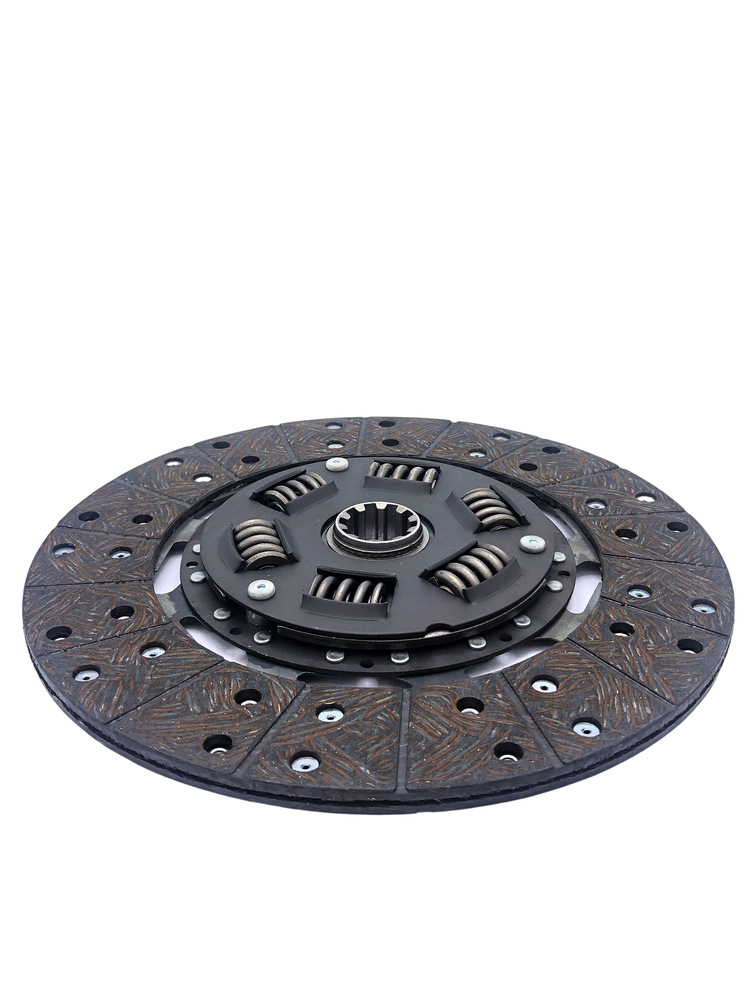

Chevrolet Parts -  Clutch Disk (Rebuilt) - 10-3/4" O.D. ($100 Core)
3835483 38-53
$100.00 Each
CHEVROLET Clutch Disk (Rebuilt) - 10-3/4" O.D. ($100 Core)

This is a rebuilt clutch disc. It measures 10-3/4 inches outside diameter.

For 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 Chevrolet Cars and Trucks

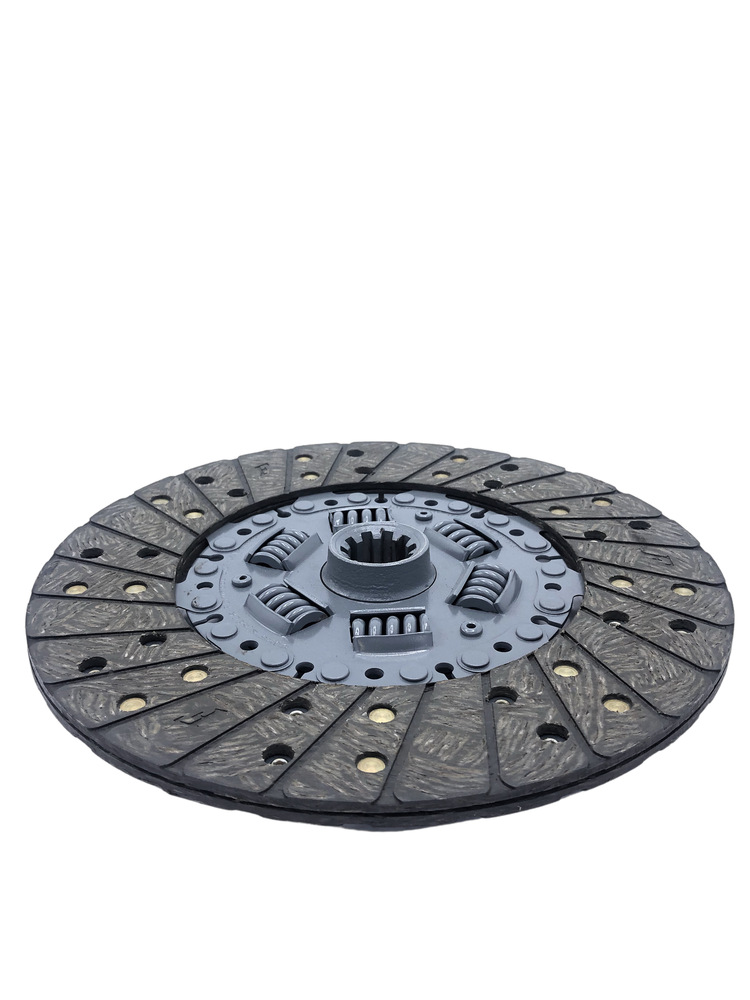

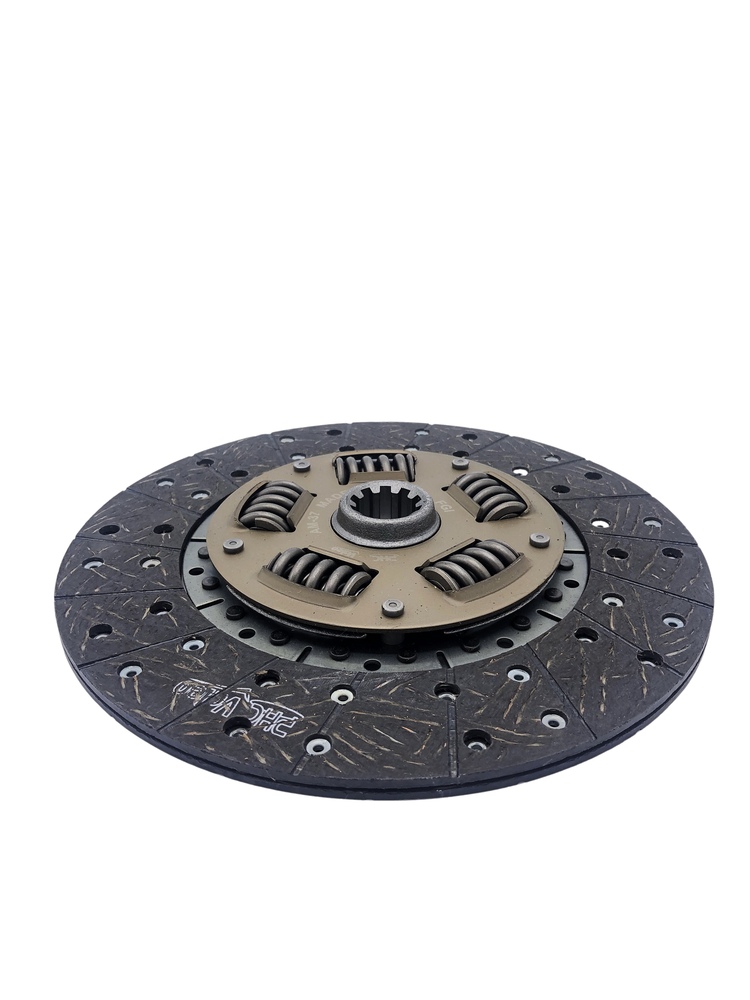

Chevrolet Parts -  Clutch Disk - 10" O.D. ($40 Core Charge)
3836119 54+57
$80.00 Each
CHEVROLET Clutch Disk - 10" O.D. ($40 Core Charge)

This clutch disc has a 10 inch diameter.

For 1954 1955 1956 1957 Chevrolet Cars and Trucks

Tool
Chevrolet Parts -  Tool -Clutch Disk Alignment
838956A ALL
$10.09 Each
CHEVROLET Tool -Clutch Disk Alignment

This is the tool used to align the clutch disc during installation. It will make transmission installation much easier as it aligns the clutch disc in the true center of the p...

For All Chevrolet Cars and Trucks

Flywheel Ring Gear
Chevrolet Parts -  Flywheel Ring Gear 139 Teeth (Except Powerglide)
838177 37/54
$75.09 Each
CHEVROLET Flywheel Ring Gear 139 Teeth (Except Powerglide)

This is the flywheel ring gear. It has 139 teeth. Inside diameter=13 inches. Outside diameter=14 inches. (Not for Powerglide equipped cars). 139 tooth ring gear must be used w...

For 1937 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 1954 Chevrolet Cars and Trucks
